How to Solved OBDSTAR PSA MD1CS003 Locked ECU TPROT Issue

Good news! The Tprot issue on PSA Bosch MD1CS003 locked ECU has been resolved by OBDSTAR when unlocking these ECUs.

Some customers reported issues with writing PSA Bosch MD1CS003 locked ECU with OBDSTAR DC706/ECU Master. After writing ECU, car start three times, and then the problem doesn’t start again.

OBDSTAR has now resolved the TPROT problem.

It adds MD1CS003 locked ECU Tprot OFF solution.

Add Citroen/Peugeot/DS Bosch MD1CS003 (Locked) TC298TP R/W INT EEPROM,
R/W INT Flash, Tprot OFF functions (Support CS) (Bench mode).


OBDSTAR Solved PSA MD1CS003 Locked ECU TPROT Issue

BMW EDC17CP09 ECU Read Tool selection: OBDSTAR, Autel or X-PROG3?

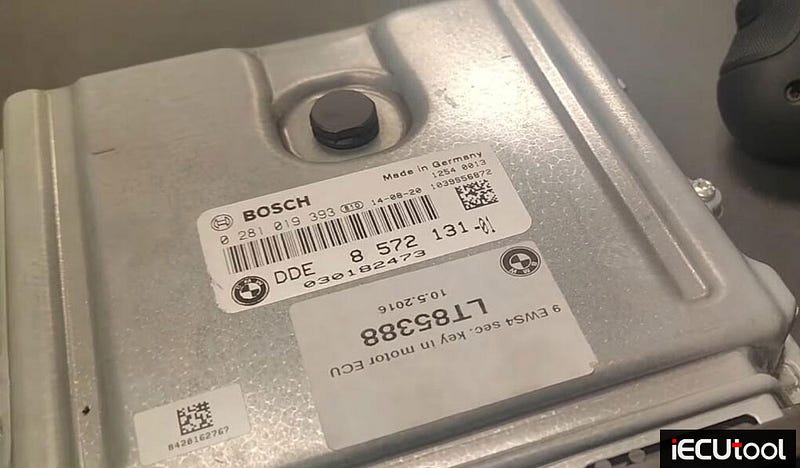

In this blog, we’ll break down a real-world attempt to read this Bosch EDC17CP09 (DDE) using different tools, the challenges faced, and the eventual solutions that worked.


Read EDC17CP09 ECU with OBDSTAR, Autel or X-prog3

Tools Tested for Reading BMW EDC17CP09

1. OBDStar DC706

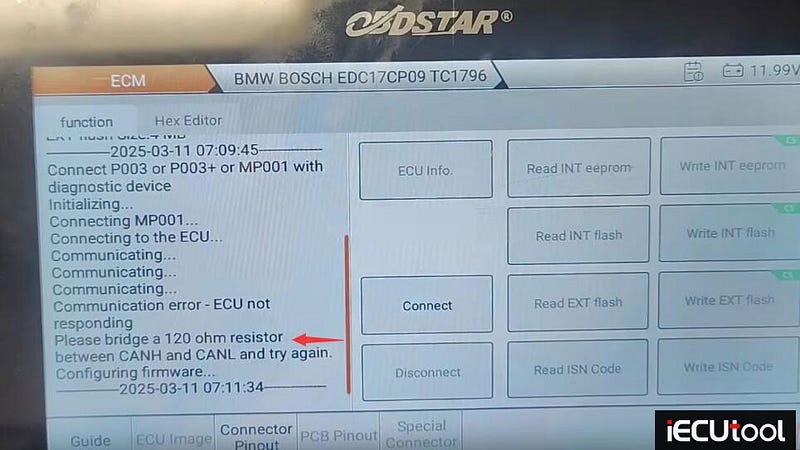

  • Issue: The tool suggested installing a 120 Ohm resistor but still couldn’t establish a connection.
  • Solution: Later discovered a missing ignition power pin in the wiring setup — once corrected, the read worked.
  • Lesson: Always double-check pinouts and wiring diagrams!

Read EDC17CP09 ECU with OBDSTAR, Autel or X-prog3

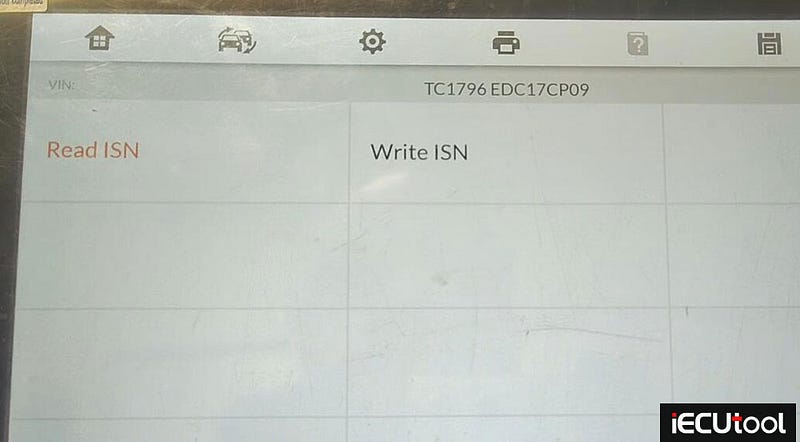

2. Autel IM608 (Partial Success)

  • Method: Used the EEPROM section with direct bench connection.
  • Successfully Read:

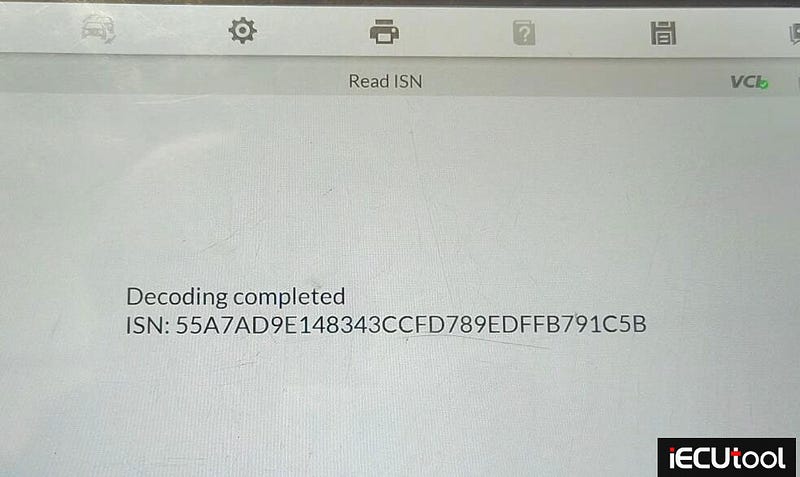

  • ISN (Immobilizer Security Number) — Useful for module transfers.
  • Flash files — Required soldering a boot pin and using the XP400 Pro programmer.
  • Limitation: Couldn’t extract full EEPROM files via OBD alone.

Read EDC17CP09 ECU with OBDSTAR, Autel or X-prog3



Read EDC17CP09 ECU with OBDSTAR, Autel or X-prog3
Read EDC17CP09 ECU with OBDSTAR, Autel or X-prog3

3. X-prog3/ Launch X-431 Tablet ( — Success!)

  • Method: Used bench mode with a custom harness.
  • Successfully Read:
  • Full EEPROM & Flash files — Required direct chip access.
  • File Transfer Issue: Couldn’t directly copy files to USB — had to email them via Gmail from the tablet.

Read EDC17CP09 ECU with OBDSTAR, Autel or X-prog3
